Schaefer FFFM525G1-3V Fiberglass Belt Drive Exhaust Fan 52"
Zoom in on Image(s)
Email a friend

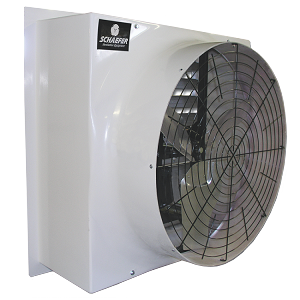

Schaefer FFFM525G1-3V Fiberglass Belt Drive Exhaust Fan 52"
Your Price:
$2,141.00
Schaefer FFM523G1-3V Fiberglass Belt Drive Exhaust Fan 52"
Part Number:
31644
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
Choose Options
Feature 11
48" Fiberglass Belt Drive Exhaust Fan
Apple
Schaefer FFFM525G1-3V Fiberglass Belt Drive Exhaust Fan 52"
Schaefer fiberglass exhaust fans are designed and built to be highly efficient (high cfm/watt), long lived and competitively priced fans for agricultural and other applications.The fiberglass exhaust fans are used worldwide to exhaust high volumes of air from factories, warehouses, garages and other locations, where building owners value low capital cost and low operating cost. Fans ship fully assembled with aluminum inlet shutters, self-adjusting belt tensioner and powder coated outlet guard.
Totally enclosed, thermally protected motors for safety and long life
Easy belt replacement, minimal maintenance required
Remote Lubrication System optional
Aluminum inlet shutter and powder coated outlet guard
Suitable for buildings with up to 12" wall thickness
Available in 36", 48" and 52" sizes
1-phase and 3-phase motors of various sizes
15 year housing warranty
Two year warranty
Made in the USA
Blade Color:Gray
Blade Material:Galvanized Steel
Brand:Schaefer
CFM (@0.05"):24100
Component Certifications:Motor - UL/CSA/CE
Cord:Not included
Country of Origin:US
Description:Fan Fiberglass Flush Mount Belt Drive 52" 5-Wing 1-1/2HP 3Ph, VFD Motor
Diameter (inches):52
Drive Type:Belt
Fixed or Portable:Fixed
Frequency (Hz):60/50
Guard Color:Black
Guard Material & Coating:Powder Coated Steel
Guard Spacing (inches):1/2
Housing Color:White
Housing Material:Fiberglass
Nameplate Amps:4.6-4.8/2.4
Number of Wings:5
Oscillating:No
Phase:3
Power (hp):1 1/2
Product Color:White
Rough-in Dimensions:59 1/4" x 59 1/4"
Speed Control Compatible:No
Speeds:1
VFD Compatible:Yes
Voltage:208-230/460
Specification
FFM523G1-3V
