3M DBI-SALA 3500285 Nano-Lok edge Twin-Leg Personal Self-Retracting Lifeline, Galvanized Cable

Your Price: $684.46

Part Number: 41137

Put me on the waiting list

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

product tabs

Product Resources
Features
Specifications

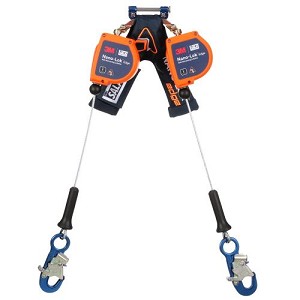

3M DBI-SALA Nano-Lok edge Twin-Leg Personal Self-Retracting Lifeline 3500285, Galvanized Cable, 8 ft

3M DBI-SALA Nano-Lok Edge Self-Retracting Lifeline (SRL) is designed for ANSI Class 2 foot-level tie-off and leading edge applications - often found in construction. The SRL is ergonomically designed for ease of use and is ideal for direct connection to most harnesses.

3M DBI-SALA Nano-Lok Edge Self-Retracting Lifeline's compact design is easily worn on the user's back and stays out of the way; it can also be used as a lanyard replacement. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from to suit a variety of applications. 3M DBI-SALA Nano-Lok Edge Self-Retracting Lifeline is designed to lock quickly stopping a fall within inches - providing more protection at low heights. In addition, tension is maintained on the lifeline, which helps reduce potential dragging and trip falls.

Designed for foot-level tie-off and leading edge applications
Compact Design
Quick activating speed sensing brake system
Durable thermoplastic housing
Built-in connector for direct attachment to harness
High capacity external energy absorber and impact indicator
RFID equipped and capatible with inventory management system
Available in multiple styles and configurations

ANSI Class Level: Class 2

Average Arrest Force (Imperial): 900 lbf (ANSI), 900 lbf (OSHA 130 lb - 310 lb)

Average Arrest Force (Metric): 4 kN (ANSI), 4 kN (OSHA 130 lb - 310 lb)

Case Quantity: 1.0 per Case

Connected Safety ID Equipped: Yes

Harness Connection Hook Material: Stainless Steel

Harness Connection Type: Single Pin Connector

Housing Material: Nylon Thermoplastic

Housing Type: Thermoplastic

Install Type: Portable & Removable

Leg Count: Twin-Leg

Lifeline Connection Type: Snap Hook

Lifeline Hook Material: Aluminum

Lifeline Length (Imperial): 8 ft

Lifeline Length (Metric): 2.44 m

Lifeline Material: Galvanized Cable

Maximum Arrest Force (Imperial): 1425 lbf (ANSI)

Maximum Arrest Force (Metric): 6.3 kN (ANSI)

Maximum Number of Users: One

Mounting Type: Direct to Harness Back

Net Weight (Imperial): 8.05 lb

Net Weight (Metric): 3.65 kg

Product Color: Orange

Product Series: Nano-Lok edge

Recommended Application: Leading Edge

Recommended Industry: Construction, Metal Fabrication, Oil & Gas

Specifications Met: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021

Style: Dual Leg

Weight Capacity (Imperial): 420 lb

Weight Capacity (Metric): 190 kg

Working Length (Imperial): 5

Working Length (Metric): 1.53

Overall Length (Imperial): 8 ft

Overall Length (Metric): 2.44 m

3M DBI-SALA 3500285 Nano-Lok edge Twin-Leg Personal Self-Retracting Lifeline, Galvanized Cable
