Anchor Connection Type: Swivel Snap Hook, Carabiner
Anchor Hook Material: Zinc Plated Steel
Anchor Hook Material: Stainless Steel, Zinc Plated Steel
Average Arrest Force (Imperial): 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb - 310 lb), 1350 lbf (ANSI 130 lb - 310 lb)
Average Arrest Force (Metric): 5 kN (ANSI), 5 kN (OSHA 130 lb - 310 lb), 6 kN (ANSI 130 lb - 310 lb)
Carabiner/Hook Material: Stainless Steel, Zinc Plated Steel
Case Quantity: 1.0 per Case
Connected Safety ID Equipped: Yes
Connector: Swivel Hook
Dimensions: 23.5" x 9" x 4", 25" x 10" x 4.25"
Features: Requires 4 ft Clearance, 420 lb Capacity, Secondary Inspection System, Swiveling Anchorage, Carabiner, Ergonomic Handle, Patented Magnetic Retraction Control, Rope Lifeline, LCP Stranded Rope
For Use With: Full Body Harness & Anchor Point
Harness Connection Hook Material: Zinc Plated Steel
Harness Connection Type: Carabiner, Swiveling Snap Hook
Housing Material: Glass-Filled Nylon, Nylon Thermoplastic
Housing Type: Thermoplastic
Includes: Carabiner
Install Type: Removable, Portable & Removable
Leg Count: Single-Leg
Lifeline Connection Type: Snap Hook, Swivel Snap Hook
Lifeline Hook Material: Stainless Steel, Zinc Plated Steel
Lifeline Length (Imperial): 20 ft, 25 ft, 30 ft, 35 ft, 40 ft, 50 ft
Lifeline Length (Metric): 6.1 m, 7.62 m, 9.1 m, 9.14 m, 10.668 m, 10.7 m, 12.2 m, 15.2 m
Lifeline Material: Stainless Steel, LCP Fiber, Galvanized Steel, Galvanized Cable
Maximum Arrest Force (Imperial): 1350 lbf (ANSI), 1500 lbf (ANSI), 1800 lbf (OSHA up to 420 lb), 1350 lbf (OSHA 130 lb - 310 lb), 1500 lbf (OSHA 130 lb - 310 lb), 1800 lbf (ANSI 130 lb - 310 lb)
Maximum Arrest Force (Metric): 6 kN (ANSI), 6.7 kN (ANSI), 6.7 kN (OSHA 130 lb - 310 lb), 8 kN (OSHA up to 420 lb), 6 kN (OSHA 130 lb - 310 lb), 8 kN (ANSI 130 lb - 310 lb)
Maximum Number of Users: One
Mounting Type: Overhead Anchor Point, Block to Anchor Point
Net Weight (Imperial): 12.07 lb, 15.99 lb, 17.9 lb, 18.3 lb
Net Weight (Metric): 5.47 kg, 7.25 kg, 8.12 kg, 8.3 kg
Product Color: Blue
Product Series: Smart Lock

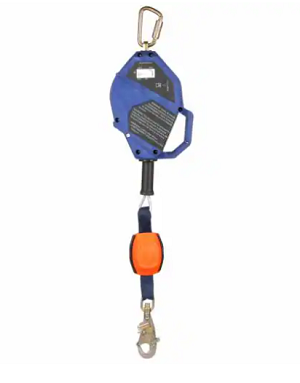

Product Type: Self-Retracting Lifeline- Cable, Self-Retracting Lifeline- Rope
Recommended Application: Inspection, Maintenance, Assembly, Climbing, Welding, Cleaning, Blasting, Electrical, Leading Edge, Decking
Recommended Industry: Construction, Mining, Oil & Gas, General Industry, Industrial, Manufacturing, Utility, Transportation, Renewable, General Manufacturing, Wind Energy, Military Maintenance, Repair & Operation (MRO), General Industrial, Utilities, Maintenance
Smallest Saleable Unit: Each
Specifications Met: ANSI Class Level 1, ANSI Class Level 2, ANSI Z359.14, ANSI/ASSP Z359.14-2021, ANSI Z359.7, ISO170025, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, OSHA, CSA Z259.2.2
Style: Single Leg
Weight (Imperial): 11.18 lb, 11.23 lb, 11.77 lb, 11.82 lb, 12.41 lb, 15.24 lb, 16.11 lb, 16.13 lb, 16.61 lb
Weight (Metric): 5.07 kg, 5.33 kg, 5.63 kg, 7.32 kg, 7.53 kg
Weight Capacity: 420 lb
Weight Capacity (Imperial): 420 lb
Weight Capacity (Metric): 190 kg
Working Length (Imperial): 18 , 23 , 28 , 35 , 38 , 48
Working Length (Metric): 5.49 , 7.01 , 8.53 , 10.7 , 11.59 , 14.59
Dimensions and Classifications
Overall Length (Imperial): 20 ft, 25 ft, 30 ft, 35 ft, 40 ft, 50 ft
Overall Length (Metric): 6.09 m, 6.1 m, 7.62 m, 9.1 m, 9.14 m, 12.2 m, 15.2 m
