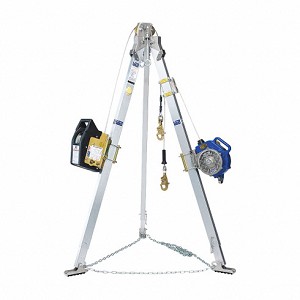

3M DBI-SALA 8301071 Confined Space Aluminum Tripod with Winch and 3-Way SRL, 60 ft (Winch), 50 ft (SRL), Stainless Steel Cable

The 3M DBI-SALA Aluminum Tripods can be set up by one worker and are portable for transporting from one location to another. They can accommodate a variety of winches and fall arrest devices and feature locking legs, detent pin styel adjustment, quick-mount mechanical device bracket, safety chain and padded feet to minimize movement.

The 3M DBI-SALA mechanical systems can serve as one of the most critical parts of the rescue plan, providing the means to retrieve an incapacitated worker to safety. Lifeline type and length are just a few of the options.

Systems available to adapt to multiple configurations

Telescoping adjustable locking legs

Built-in pulley system

Rubber padded tripod feet and leg support chain

Integrated 5,000 lb. (22 kN) eyebolt anchor points

Features manually operated winch

Winch options available with different gear ratios to provide mechanical advantage

Swiveling snap hook with built-in impact indicator

Equipped with pre-programmed RFID

Eye Bolt Material Handling Weight Capacity: 1000 lb (453 kg)

Mounting Bracket Material Handling Weight Capacity: 620 lb (281 kg)

Carabiner/Hook Material: Zinc Plated Steel

Connected Safety ID Equipped: Yes

Install Type: Portable

Lifeline Length (Imperial): 50 ft

Lifeline Length (Metric): 15.2 m

Lifeline Material: Stainless Steel Cable

Product Color: Silver

Product Type: Confined Space System

Recommended Industry: Construction, Mining, Oil & Gas, Utilities, General Industrial, Transportation

Specifications Met: OSHA 1910.140, OSHA 1926.502

Dimensions and Classifications

Overall Height (Imperial): 7 ft

Overall Height (Metric): 2.13 m
