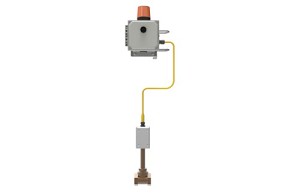

Bradley S19-323D Emergency Signaling System NEMA 3R Drench or Combination
Zoom in on Image(s)
Bradley S19-323D Emergency Signaling System NEMA 3R Drench or Combination
Email a friend
Bradley S19-323D Emergency Signaling System NEMA 3R Drench or Combination
Your Price:
$2,278.00
Bradley S19-323D Emergency Signaling System NEMA 3R Drench or Combination
Part Number:
22201
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Resources
Bradley S19-323D Emergency Signaling System NEMA 3R Drench or Combination
Wall or Fixture Mounted Emergency Signaling System. Indoor and Outdoor Installation. NEMA 3R Rated. For Use With Drench Showers or Combination Units. Double Pole Double Throw (DPDT) Flow Switch in Brass Construction, 1-1/4" NPT Supply. Remote Location Hookup Possible via Contacts in Flow Switch or On Control Board. Automatic, Audible, and Visual Alarm. Minimum 2.4 GPM Flow Required. 6 Foot Cord. Universal Voltage: 90-264 AC, 50-60 Hz. Amber Signal Light and Piezo Fast Beep Horn Sound Activate When Fixture is Used. Central Control Board Powers All Options and Runs on Safe 24 V System. UL Listed.
Features
Recessed automatic, audible and visual system
Double pole, double throw flow switch
Designed to meet NEMA No. 3R Code (Waterproof)
Easily connected to other emergency fixture units
For indoor and outdoor applications
Universal AC voltage: 90-264 AC, 50-60 Hz
Extra contacts in central control board and flow switch for remote location hookup
UL Listed Industrial Control Panel(s) for US and Canada
Replacement Model for the S19-320 Flow Switch Alarm System
Technical Data
S19-323D Emergency Signaling System
Installation
S19-323, S19-324 Emergency Signaling System
