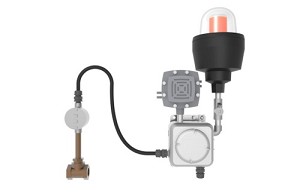

Bradley S19-324D1D Emergency Signaling System, Explosion Proof, Class I Division 1
Zoom in on Image(s)
Bradley S19-324D1D Emergency Signaling System, Explosion Proof, Class I Division 1
Email a friend
Bradley S19-324D1D Emergency Signaling System, Explosion Proof, Class I Division 1
Your Price:
$6,354.60
Bradley S19-324D1D Emergency Signaling System, Explosion Proof, Class I Division 1
Part Number:
22224
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Resources

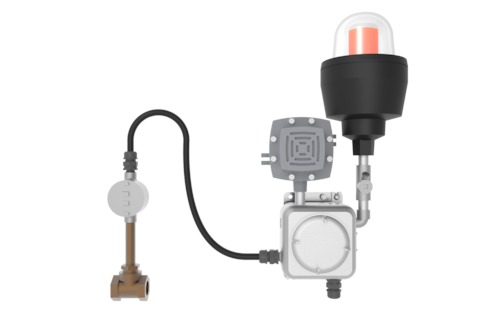

Bradley S19-324D1D Emergency Signaling System, Explosion Proof, Class I Division 1
Class I, Division 1, Groups B, C and D, Explosion Proof. Fixture Mounted Emergency Signaling System. Indoor and Outdoor Installation. NEMA 4 Rated. For Use With Drench Shower or Combination Units. Double Pole Double Throw (DPDT) Flow Switch in Brass Construction, 1-1/4" NPT Supply. Remote Location Hookup Possible via Contacts in Flow Switch and/or On Control Board. Automatic, Audible, and Visual Alarm. Minimum 2.4 GPM Flow Required. 3 and 6 Foot Cord Supplied for Connections to Flow Switch and Power Supply. Universal Voltage: 90-264 AC, 50-60 Hz. Amber Signal Light and Piezo Fast Beep Horn Sound Activate When Fixture is Used. Central Control Board Powers All Options and Runs on Safe 24 V System. UL Listed.
Features
Class I, Division 1, Groups C & D, Explosion Proof
Recessed automatic, audible and visual system
Double pole, double throw flow switch
Designed to meet NEMA 4X
Easily connected to other Emergency Fixture units
For indoor and outdoor applications
Universal AC voltage: 90-264 AC, 50-60 Hz
Extra contacts in central control board and flow switch for remote location hookup
UL Listed Industrial Control Panel(s) for US and Canada
Technical Data
S19-324D1D Explosion-Proof Emergency Signaling System
S19-324D1 Explosion-Proof Emergency Signaling System
Installation
Explosion-Proof Emergency Signaling System S19-324D1
