Bradley Navigator Thermostatic Mixing Valve, designed for use in commercial applications. Valve designed for master hot water distribution. High/Low type valve is designed to control water temperature during periods of both high and low demand.. Powerful liquid filled thermostat with 10 year warranty insures constant outlet temperature. Temperature range 90-120 degrees F. Certified to ASSE 1017. Certified to cUPC standards. Certified to CSA standards. Certified by IAPMO to meet lead free plumbing laws. Rough brass finish. 384 GPM @ 45 PSI. Incoming 3in. NPT connections, outlet is 3in. NPT, Dial thermometer. Maximum operating pressure of 125 PSI. Maximum inlet temperature of 200 degrees F. Minimum temperature differential of 15 degrees F between incoming hot water temperature and valve set point. Manufactures limited warranty.
Features

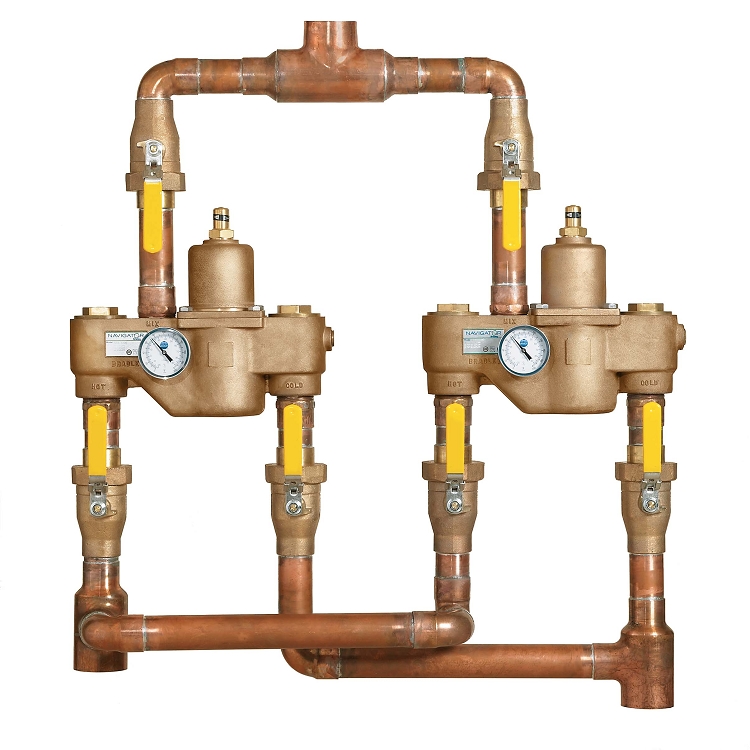

High Capacity System Features:
((2) S59-3200 valves assembled into a manifold system
Factory assembled and tested
Piping assembly w/ inlet and outlet shutoff valves
Easy installation and serviceability
Navigator High-Low Valve Features:
Reliable liquid-filled thermostat with 10 year warranty
Integral strainer checkstops on inlets
Adjustable set point within temperature range
Accurate temperature control to within ±3° F
Positive shutoff of flow in the event of cold supply line failure or thermostat failure
Dirt and lime resistant
Dial Thermometer on each valve
