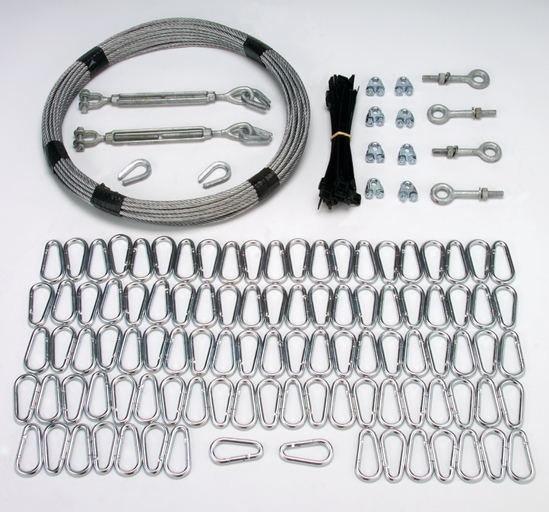

Side guard kit for conveyor guard net system - We've made installing the system to your conveyor fast, simple and safe with standard hardware kits containing everything needed.
Accommodates 25 to 50 ft. (8-15 m) system - Various lengths available for greater flexibility and ease of use.
Easily installed without special tools - Extremely fast and simple set-up with common tools found in most facilities for added ease of use.
110 ft. (34 m) of 1/4" (6.4 mm) wire cable - Provides a continuous anchor point which the net is connected to and offers fast and simple installation.
4 ea. 3/8" (9.5 mm) eyebolts - Provides easy to install anchor points to attach the cable system.
2 ea. 3/8" (9.5 mm) turnbuckles - Allows a fast and simple means to tension the cable lifeline.
2 ea. 1/4" (6.4 mm) thimbles - When combined with the cable clamps, these devices provide a simple means to terminate the cable lifeline.
8 ea. 1/4" (6.4 mm) cable clamps - When combined with the thimbles, these devices provide a simple means to terminate the cable lifeline.
100 ea. 5/16" (7.9 mm) snap hooks - Extremely fast way to attach the net along the entire run to the cable anchor system.
1 ea. Package of nylon ties - Allows you to attach nets together to create longer runs for added flexibility.
Boxed Shaped Guard hardware kit also available - model 4100020 - If your application requires a box shaped type system, we also have a kit available with everything needed to for fast, simple and safe installation.
Custom configurations also available - Don't see what you need, contact us today and request a quote for your custom conveyor guard system.
