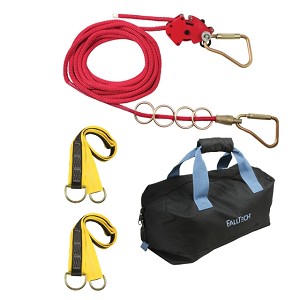

Falltech 777050 50' HLL Kit ChkLine Temp 4Man

Your Price: $798.18

Part Number: 27954

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Product Resources
Features
Specifications
Resources

Falltech 777050 50' HLL Kit ChkLine Temp 4Man

Recently Viewed Items

Mailing List

Material Specifications
Rope	Hybrid Vectran: 8,000 lb. tensile strength
Tensioner	Aluminum alloy, 6,000 lb. tensile strength
Connectors	Alloy Steel; Min. 8,000 lbs. tensile strength
Connector Gates	Alloy Steel; Min. 3,600 lbs. front load and side load
Performance Specifications
Tensile Strength	Min. 5,000 lbs
Max. Capacity	310 lbs./user - up to 4 users
Max. Allowable Freefall	6 feet
Max. Input Arrest Force	900 lbs./user - up to 4 users.
Dynamic Sag	3 feet
Min. Clear-fall	21 feet
Spans from 30' - 75'
	1 User
Dynamic End-Loads	900 lbs
Anchor Pt. Strength	1,800 lbs
	2 User
Dynamic End-Loads	1,100 lbs
Anchor Pt. Strength	2,200 lbs
	3 Users
Dynamic End-Loads	1,350 lbs
Anchor Pt. Strength	1,700 lbs
	4 Users
Dynamic End-Loads	1,550 lbs
Anchor Pt. Strength	3,100 lbs
Spans from 75' - 100'
	1 User
Dynamic End-Loads	1,300 lbs
Anchor Pt. Strength	2,600 lbs
	2 User
Dynamic End-Loads	1,550 lbs
Anchor Pt. Strength	3,100 lbs
	3 Users
Dynamic End-Loads	1,900 lbs
Anchor Pt. Strength	3,800 lbs
	4 Users
Dynamic End-Loads	2,200 lbs
Anchor Pt. Strength	4,400 lbs
Relevant Standards
OSHA	CFR1926.502, CFR1910.66
