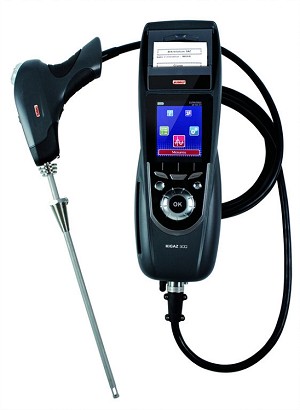

Kimo KIGAZ 310 STD Combustion Gas Analyser
Zoom in on Image(s)
Email a friend
Kimo KIGAZ 310 STD Combustion Gas Analyser
Your Price:
$5,142.96
Kimo KIGAZ 310 STD Combustion Gas Analyser
Part Number:
28548
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
Resources
The KIGAZ 310 is the most comprehensive in the range and is configurable to your requirements with four inter-changeable sensors. It accurately measures the main combustion data for domestic boilers up to 400 kW.
Kimo's range of combustion gas analysers are ideal for efficiency monitoring and for limiting emissions from all types of boilers
Kimo KIGAZ 310 STD Combustion Gas Analyser
Combustion gas analyser for any type of boiler with 3 interchangeable sensors O2-LV (5-year life duration)
CO-H2, NO/NOX, evolutive up to 4 sensors
Autodiagnostic, voice assistance
CO-H2 dillution autozero inside the duct
3 pressure sensors
Built-in water trap with maximum level alarm
TFT colour display
Creation and printing of maintenance certificates on built-in printer
2 therm-couple channels; 2 Go-memory
Supply with ABS transport case; magnetic protective cover
Differential pressure kit including 2 x 1 m of silicone tube
300mm interchangeable probe with integrated draft measurement
LED and sole connector, Li-Ion battery, charger
LIGAZ-2 software for printing of maintenance certificates
USB cable and calibration certificate
Coming in option: KIGAZ MOBILE bluetooth module for mobile application and tablet (androïd and Ios)
MEASURING RANGES
O2 longue vie – Electrochimical: 0.00 % ... 21.00 %
CO (avec compensation H2) – Electrochemical: 0.00 ppm ... 8000.00 ppm
NO – Electrochemical: 0.00 ppm ... 5000.00 ppm
NO basse échelle – Electrochemical: 500.00 ppm
NO2 – Electrochemical: 0.00 ppm ... 1000.00 ppm
SO2 – Electrochemical: 0.00 ppm ... 5000.00 ppm
CH4 – Semiconductor: 0.00 ppm ... 10000.00 ppm
CH4 – Semiconductor: 0.00 %vol ... 1.00 %vol
CH4 – Semiconductor: 0.00 %LEL ... 20.00 %LEL
Température ECS – K: -200.00 °C ... 1300.00 °C
Tirage – Piezoresitive: -1000.00 Pa ... 1000.00 Pa
TECHNICAL DETAILS
Parameters: Gas detection
Displays: Color graphical display
IP Protection: IP 40
Battery life: 10 hours
Standards: 2004/108/EC; NF EN 50379-1; NF EN 50379-2; 2006/95/EC Low voltage;
2011/65/EU RoHS II; 2012/19/EU WEEE
Bluetooth: 1
Power supply: Battery Li-ion 6V 1.5A
USB: Yes
Sensors: CH4; CO-H2; Long-life O2; NO; NO2; SO2
Auto-zero: Yes
Printer: Built-in
Sensor protection: CO dilution
Combustion condensate: Built-in water trap with max level alarm
Mobile application: KIGAZ Mobile
OPERATING TEMPERATURE
MIN: -5.00 °C
MAX: 50.00 °C
STORAGE TEMPERATURE
MIN: -20.00 °C
MAX: 50.00 °C
Documents
User Manual
Technical Data Sheet
