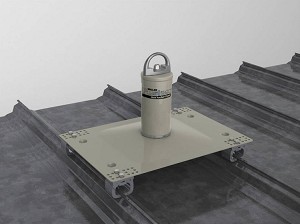

Miller Honeywell Fusion X10000 Standing Seam Roofing Anchor Post
Zoom in on Image(s)
Email a friend
Miller Honeywell Fusion X10000 Standing Seam Roofing Anchor Post
Your Price:
$750.61
Miller Honeywell Fusion X10000 Standing Seam Roofing Anchor Post
Part Number:
24495
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Specifications
Choose Options
Resources
Miller Honeywell Fusion X10000 Standing Seam Roof Anchor Post
Small Base with Post and Standing Seam Clamping Assembly Kit
Standing seam spacing from 11.75-in.(298 mm)to 17-in.(432 mm)
Standing Seam Design
Aluminum clamping mechanism is designed to pre-install to the base plate and is self centering for easy installation
The clamping bolts are tightened from above the plate for easy fastening and inspection
Can be used for permanent and temporary installations
Three models are available to accommodate standing seam spacing up to 24-in. (610 mm)
Features
Significantly reduces the fall forces on the roof structure – In the event of a fall, the top of the Miller Fusion Roof Anchor Post reorients with the force in a direct line and activates the patent-pending energy absorber.
Durable design that withstands the changing outdoor environment – Internal components are made of stainless steel
Double coating for extra protection – The steel post and base are plated with zinc followed by a premium powder coating for two layers of protection
Versatile single-point anchor adapts to a wide range of roof designs
Models for steel decking, concrete and wood can be used on other non-roof structure
Applications
Roof inspection and maintenance
Air conditioning, ventilation fan and solar panel maintenance
Skylight cleaning
Debris removal from gutters
Installation and maintenance of satellite dishes and other communication systems
SPECIFICATIONS
Width
: 15-1/4"
Includes
: (4) Clamp Assembly Kit
D-Ring Material
: Stainless Steel
Length
: 18"
Item
: Roof Anchor Post
Depth
: 8-3/5"
Tensile Strength
: 5000 lb.
Attaches To
: Standing Seam Roof
Weight Capacity
: 310 lb.
Material
: Stainless Steel/Aluminum
Standards
: OSHA, ANSI A10.32 and Z359.1-2007
Country of Origin (subject to change)
: United States
Literature and Documents
I302 Fusion Roof Anchor Posts User Manual
Miller Fusion FAQ
OSHA Letter distributor final 2013
Miller Fusion Brochure
SP452 Fusion/Shock Fusion Technical Data Sheet
