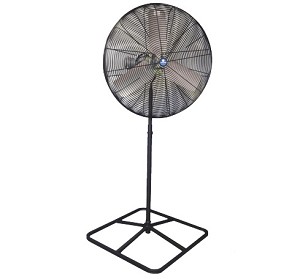

Schaefer 24PF-HL 24" Hazardous Location Pedestal Fan
Zoom in on Image(s)
Schaefer 24PF-HL 24" Hazardous Location Pedestal Fan
Email a friend
Schaefer 24PF-HL 24" Hazardous Location Pedestal Fan
Your Price:
$1,163.42
Schaefer 24PF-HL 24" Hazardous Location Pedestal Fan
Part Number:
30077
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
Resources
24" Hazardous Location Pedestal Fan
Schaefer 24PF-HL 24" Hazardous Location Pedestal Fan
For spot cooling in atmospheres containing flammable or explosive vapors, gases, or dusts. Motor is UL listed for Class 1, division 1, Groups C & C, and Class 2, Division 1, Groups E,F, & G for flammable vapors combustible dust environments. Meets OSHA safety regulations while delivering maximum air flow in wide range of hazardous location applications.
Features
Black pedestal mount
Aluminum blades, motor CSA
1 Phase, Single speed, 115 Voltage
Non-sparking aluminum blades for increased safety
Powder coated steel guards for corrosion resistance and durability
Thermally protected, heavy-duty, maintenance free
Matched high quality motors and blades for maximum airflow
Must be hardwired; cord and switch is not included
Made in USA
UL listed for Class 1, Division 1, Groups c & D and Class 2, Division 1, Groups E, F, & G
DIMENSIONS: ( Fan Head) 27" x 27" x 13" (Pedestal) 36" x 8" x 34"
Specifications
Blade Color:
Metallic
Blade Material:
Aluminum
Blade Pitch (degrees):
14
Brand:
Schaefer
CFM (free air):
7980
CFM Calculation Standard:
ANSI/AMCA Standard 230-99
CFM/Watt (free Air):
7.24
Component Certifications:
Motor - CSA
Cord:
Not included
Country of Origin:
US
Description:
(24CFO-HL, PED30R-B)
Diameter (inches):
24
Distinguishing Feature - Fan:
Hazardous Location Rated
Drive Type:
Direct
Enclosure:
TEFC
Fixed or Portable:
Portable
Frequency (Hz):
60
Guard Color:
Black
Guard Material & Coating:
Powder Coated Steel
Guard Spacing (inches):
1/2 OSHA
Max RPM:
1725
Mount Type Included:
Pedestal
Nameplate Amps:
9.8/4.9
Number of Wings:
3
Opening Area (sq. ft.):
NA
Oscillating:
No
Phase:
1
Power (hp):
1/2
Product Color:
Black
Product Weight (pounds):
78
Rough-in Dimensions:
NA
Schaefer Performance Test No.:
0762
Speed Control Compatible:
No
Speeds:
1
Switch:
Not included
Thermal Protection:
Yes
VFD Compatible:
No
Voltage:
115/208-230
MANUAL
Hazardous Location Fans 24" and 30" OSHA Compliant Circulation Fans
