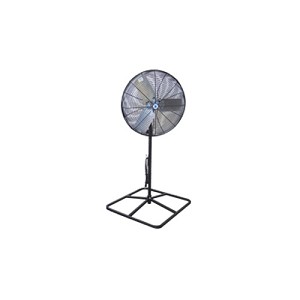

Schaefer 30PF-HL 30" Hazardous Location Pedestal Fan
Zoom in on Image(s)
Schaefer 30PF-HL 30" Hazardous Location Pedestal Fan
Email a friend
Schaefer 30PF-HL 30" Hazardous Location Pedestal Fan
Your Price:
$1,371.30
Schaefer 30PF-HL 30" Hazardous Location Pedestal Fan
Part Number:
30078
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
Resources
24" Hazardous Location Pedestal Fan
Schaefer 30PF-HL 30" Hazardous Location Pedestal Fan
For spot cooling in atmospheres containing flammable or explosive vapors, gases, or dusts. Motor is UL listed for Class 1, division 1, Groups C & C, and Class 2, Division 1, Groups E,F, & G for flammable vapors combustible dust environments. Meets OSHA safety regulations while delivering maximum air flow in wide range of hazardous location applications.
Features
Metallic color blades, black guard color, pedestal mount
Aluminum blades, motor CSA
1 Phase, Single speed, 115 Voltage
Non-sparking aluminum blades for increased safety
Powder coated steel guards for corrosion resistance and durability
Thermally protected, heavy-duty, maintenance free
Matched high quality motors and blades for maximum airflow
Must be hardwired; cord and switch is not included
Made in USA
UL listed for Class 1, Division 1, Groups c & D and Class 2, Division 1, Groups E, F, & G
DIMENSIONS: (Fan Head) 34" x 34" x 14" (Pedestal) 36" x 8" x 34"
Specifications
Blade Color:
Metallic
Blade Material:
Aluminum
Blade Pitch (degrees):
9
Brand:
Schaefer
CFM (free air):
10670
CFM Calculation Standard:
ANSI/AMCA Standard 230-99
CFM Range (Free Air):
10001 - 15000
Component Certifications:
Motor - CSA
Cord:
Not included
Country of Origin:
US
Description:
(30CFO-HL, PED30R-B)
Diameter (inches):
30
Distinguishing Feature - Fan:
Hazardous Location Rated
Drive Type:
Direct
Enclosure:
TEFC
Fixed or Portable:
Portable
Frequency (Hz):
60
Guard Color:
Black
Guard Material & Coating:
Powder Coated Steel
Guard Spacing (inches):
1/2 OSHA
Max RPM:
1725
Mount Type Included:
Pedestal
Mount Type Recommended:
NA
Nameplate Amps:
9.8/4.9
Number of Wings:
3
Opening Area (sq. ft.):
NA
Oscillating:
No
Phase:
1
Power (hp):
1/2
Product Color:
White
Product Weight (pounds):
96
Rough-in Dimensions:
NA
Speed Control Compatible:
No
Speeds:
1
Switch:
Not included
Thermal Protection:
Yes
VFD Compatible:
No
Voltage:
115/208-230
MANUAL
Hazardous Location Fans 24" and 30" OSHA Compliant Circulation Fans
