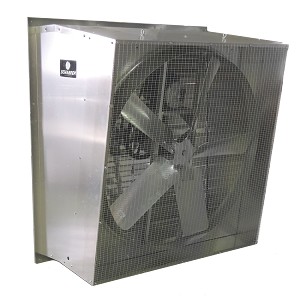

Schaefer 365AS12 Aluminum Exhaust Fan in Slant Wall Housing 36"
Your Price:
$1,449.00
Schaefer 365AS12 Aluminum Exhaust Fan in Slant Wall Housing 36"
Part Number:
31961
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
Resources
36" Aluminum Exhaust Fan in Slant Wall Housing, 5-Wing, 1/2 Hp, Belt Drive
Schaefer 365AS12 Aluminum Exhaust Fan in Slant Wall Housing 36"
SCHAEFER aluminum slant wall exhaust fans are built with heavy-duty, corrosion resistant aluminum for best-in-class durability and longevity. Using only high quality and energy efficient motors, they are designed for exceptional performance and maximum efficiency, and provide low maintenance and operating costs. The aluminum slant wall exhaust fans are the ideal solution for air exchange and cooling needs in greenhouse application that want an extremely durable fan that will last for many years. Ships fully assembled with shutters to be easily installed in field.
5-wing aluminum blade with low solidity ratio for maximum efficiency and airflow and quiet operation
Durable aluminum vertical uprights for reliable housing and motor support
Aluminum shutter with reduced flapping for greater efficiency
Totally enclosed, maintenance free and thermally protected motor for long life and ease of use
Belt drive models come equipped with self-adjusting idler style belt tensioner for easy adjustment
Pre-lubricated, permanently sealed ball bearings with optional remote bearing lubrication system for easy maintenance
OSHA inlet and outlet guards available for additional safety
Available in belt drive or direct drive
Suitable for buildings with up to 6" wall thickness using standard rough-in dimensions
Two year warranty
Made in the USA
Available with VFD compatible 3-phase motors for increased energy efficiency and ventilation flexibility
Able to Ship Small Parcel:No
Blade Color:Metallic
Blade Material:Aluminum
Brand:Schaefer
CFM (@0.05"):9500
CFM (@ 0.10"):8600
CFM (free air):10300
CFM (high):10300
CFM Range (Free Air):10001 - 15000
CFM/Watt (@0.05"):19.5
CFM/Watt (@0.10"):17
Component Certifications:Motor - UL/CSA
Cord:Not included
Country of Origin:US
Description:Fan Exhaust Aluminum Slantwall 36" 5-Wing Aluminum Blade 1/2HP
Diameter (inches):36
Distinguishing Feature - Fan:Highly Corrosion Resistant
Drive Type:Belt
Fixed or Portable:Fixed
Frequency (Hz):60
Housing Color:Metallic
Housing Material:Aluminum
Nameplate Amps:4.6/2.3
Number of Wings:5
Oscillating:No
Phase:1
Power (hp):1/2
Product Color:Metallic
Product Shipping Dimensions:48X36X57
Rough-in Dimensions:43" x 43-3/4"
Schaefer Performance Test No.:Schaefer
Speed Control Compatible:No
Speeds:1
VFD Compatible:No
Voltage:115/230
Specification
365AS12
