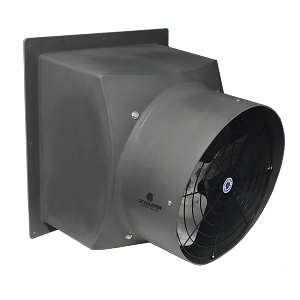

Schaefer FFM483S1-3V Fiberglass Belt Drive Exhaust Fan 48"

RECOMMEND A FRIEND

Please complete the fields below to send your friend a link to this product. Your friend will receive an email from you with a link to our site.

Your Name: *

Your Email: *

Friend's Name: *

Friend's Email: *

Note to friend:: *

Verification: *

Type the word above...

Thank you for recommending this product.

Schaefer PFM2400-3-HL Direct Drive Hazardous Location Poly Exhaust Fan 24"

Your Price: $978.00

Part Number: 32087

Put me on the waiting list

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

product tabs

Description
Product Resources
Features
Specifications
Resources

24" Direct Drive Hazardous Location Exhaust Fan, Aluminum Shutter, Aluminum Blade, 3-Phase

Schaefer PFM2400-3-HL Direct Drive Hazardous Location Poly Exhaust Fan 24"

A robust and versatile solution for exhausting moderate amounts of the air containing flammable or explosive vapors, gases, or dusts. Fans have a spark proof design to minimize the potential for the fan being the ignition source of an explosion in a hazardous location.

Motors are UL Listed for Class I, Division I, Groups C & D, and Class 2, Division 1, Groups E, F, & G for flammable vapors and combustible dust environments.

The fans provide an energy efficient and cost effective solution for exhausting air and moisture from a wide range of hazardous location applications.

Three sizes - 16", 20" and 24" diameters
Non-sparking aluminum blades for increased safety
Anti-static polyethylene gray housing for safety and corrosion resistance
Thermally protected, heavy-duty, maintenance free, 1 speed motor for optimal performance
Matched high quality motors and blades for maximum airflow
Integrated aluminum inlet shutter and powder coated outlet guard
Mounts flush to interior wall; suitable for buildings with up to 10" wall thickness
Ships fully assembled
Two year fan warranty; 25 year housing warranty
Made in the USA
IMPORTANT! THE USE OF AN EXPLOSION PROOF MOTOR OR AN ALUMINUM BLADE DOES NOT QUALIFY THE FAN AS EXPLOSION PROOF. NO AIR EXHAUST/VENTILATION FAN IS TOTALLY EXPLOSION PROOF.

Blade Color:Metallic
Blade Material:Aluminum
Blade Pitch (degrees):19
Brand:Schaefer
CFM (free air):6230
CFM Range (Free Air):5001 - 10000
Component Certifications:Motor - UL/CSA
Cord:Not included
Country of Origin:US
Description:Fan Exhaust 24" Poly Flushmount 5-Wing 3Ph w/ Aluminum Shutter, Hazardous Location Motor, Class 1, Division 1, Groups C & D, Class 2, Division 1, Groups E, F, and G
Diameter (inches):24
Distinguishing Feature - Fan:Hazardous Location Rated
Drive Type:Direct
Fixed or Portable:Fixed
Frequency (Hz):60
Guard Color:Black
Guard Material & Coating:Powder Coated Steel
Guard Spacing (inches):1/2
Housing Color:Gray
Housing Material:Polyethylene
Max RPM:1725
Nameplate Amps:3.6/1.8
Number of Wings:3
Oscillating:No
Phase:3
Power (hp):1/2
Product Color:Gray
Product Weight (pounds):68
Rough-in Dimensions:29" x 29 1/2"
Schaefer Performance Test No.:773
Speed Control Compatible:No
Speeds:1
Thermal Protection:Yes
VFD Compatible:No
Voltage:208-230/460
