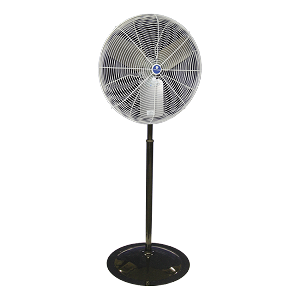

Schaefer TW20W-PRB 20" Oscillating OSHA Pedestal Fan
Zoom in on Image(s)
Schaefer TW20W-PRB 20" Oscillating OSHA Pedestal Fan
Email a friend
Schaefer TW20W-PRB 20" Oscillating OSHA Pedestal Fan
Your Price:
$663.68
Schaefer TW20W-PRB 20" Oscillating OSHA Pedestal Fan
Part Number:
30079
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
20" Twister Oscillating Circulation Fan, White OSHA Guards, Black Round Pedestal
Schaefer TW20W-PRB 20" Oscillating OSHA Pedestal Fan
Geared for performance, Twister's oscillating motor utilizes highest quality metal gear design for unparalleled strength, greater load capacity and higher accuracy. Whether aimed at a workstation or down an assembly line, Twister provides the versatility and performance needed to improve worker productivity and safety.
Features
Schaefer oscillation technology
2-speed high efficiency motor with 10 foot cord
OSHA compliant guards, available in black or white
90° of total oscillation
45° of fan head adjustment up or down
Four sizes 20", 24", 30" and 36" for optimizing air flow needs
Low noise levels, quieter than conversational voice
Fixed or portable mounting capabilities
Two year warranty
Assembled in the USA
Specifications
Blade Color:
Metallic
Blade Material:
Aluminum
Brand:
Schaefer
CFM (free air):
4100
CFM (high):
4100
CFM (low):
3400
CFM Calculation Standard:
ANSI/AMCA Standard 230-99
CFM Range (Free Air):
2501 - 5000
CFM/Watt (free Air):
22.8
CFM/Watt Range (free air):
20.1 - 25
Component Certifications:
Motor - CSA
Cord:
Included - Wired
Cord Length (feet):
10
Country of Origin:
US
Description:
20" Oscillating Circulation Fan, White OSHA Guards, Black Round Pedestal
Diameter (inches):
20
Drive Type:
Direct
Fixed or Portable:
Portable
Frequency (Hz):
60
Guard Color:
White
Guard Material & Coating:
Powder Coated Steel
Guard Spacing (inches):
1/2 OSHA
Max RPM:
1075
Mount Type Included:
Pedestal
Mount Type Recommended:
NA
Nameplate Amps:
3.0
Number of Wings:
3
Opening Area (sq. ft.):
NA
Oscillating:
Yes
Phase:
1
Power (hp):
1/4
Product Color:
White
Rough-in Dimensions:
NA
Schaefer Performance Test No.:
697
Sound Level (dBA @ 10'):
63.5
Speed Control Compatible:
No
Speeds:
2
Switch:
On product
VFD Compatible:
No
Voltage:
115
