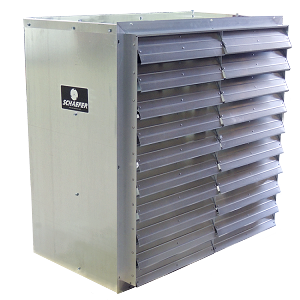

Schaefer 485B1-3V Exhaust Fan in Box Housing 48"
Zoom in on Image(s)
Email a friend
Schaefer 485B1-3V Exhaust Fan in Box Housing 48"
Your Price:
$1,699.00
Schaefer 485B1-3V Exhaust Fan in Box Housing 48"
Part Number:
31840
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
Resources
48" Galvanized Exhaust Fan in Box Housing, 5-Wing, 1 Hp, Belt Drive, 3-Phase, VFD Compatible
Schaefer 485B1-3V Exhaust Fan in Box Housing 48"
Maintain a safe and productive work environment by exchanging hot or contaminated air using Schaefer low cost galvanized, box exhaust fans. These low cost, high volume exhaust fans are protected from the elements with outlet side aluminum shutters and mount in walls of almost any thickness, typically with the outlet shutter flush, or nearly flush with the outside wall. Fans ship fully assembled with aluminum inlet shutters, self-adjusting belt tensioner and galvanized outlet guard.
G90 galvanized construction, for corrosion resistance and long life
Totally enclosed, thermally protected motors for safety and long life
Easy belt replacement, minimal maintenance required
Remote Lubrication System optional
Suitable for buildings with any wall thickness
Available in 36" or 48" sizes
3-wing or 5-wing blade style
Two year warranty
Made in the USA
Blade Color:Gray
Blade Material:Galvanized Steel
Brand:Schaefer
Component Certifications:Motor - UL/CSA/CE
Cord:Not included
Country of Origin:US
Description:Fan Exhaust Wide Box 48" 5-Wing 1HP 3 Ph VFD
Diameter (inches):48
Drive Type:Belt
Fixed or Portable:Fixed
Frequency (Hz):60/50
Guard Color:Metallic
Guard Material & Coating:Galvanized Steel
Guard Spacing (inches):1/2
Housing Color:Gray
Housing Material:Galvanized Steel
Nameplate Amps:3.2/1.6
Number of Wings:5
Oscillating:No
Phase:3
Power (hp):1
Product Color:Metallic
Rough-in Dimensions:55" x 55"
Speed Control Compatible:No
Speeds:1
VFD Compatible:Yes
Voltage:208-230/460
Specification
485B1-3V
