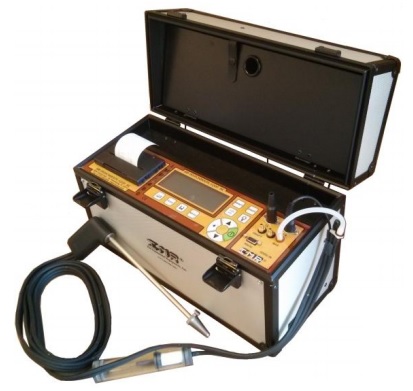

IMR Environmental 1400PS NO H2S Combustion Gas Analyzer CO O2 CO2

Your Price: $3,899.00

IMR Environmental 1400PS NO H2S Combustion Gas Analyzer CO O2 CO2

Part Number: 14459

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

IMR Environmental 1400PS NO H2S Combustion Gas Analyzer CO O2 CO2

IMR Environmental 1400PS NO/H2S Specifications

Recently Viewed Items

Mailing List

IMR Environmental 1400PS NO/H2S Specifications
Parameter	Principle	Resolution	Accuracy	Range	Standard
O2 Oxygen	Electro chemical cell	0.1 Vol.%	+/- 0.2 Vol. %	0-20.9 Vol. %	X
CO Carbon monoxide	Electro-chemical cell	1 ppm	Z	0-2000ppm	X
COp Carbon monoxide O2 corrected	Calculation	1 ppm	Z		X
CO2 Carbon dioxide	Calculation	0.1 Vol.%	+/- 0.2 Vol. %	0- CO2 max	X
HC/CH4 Hydrocarbons	NDIR	0.1%	Z	0-100% LEL
NO Nitric oxide	Electro chemical cell	1 ppm	Z	0-2000 ppm
NO2 Nitrogen dioxide	Electro chemical cell	1 ppm	Z	0-100 ppm
SO2 Sulfur dioxide	Electro chemical cell	1 ppm	Z	0-4000 ppm
H2S Hydrogen Sulfide	Electro chemical cell	1 ppm	Z	0-200 ppm	X
TG Flue gas temperature	NiCr-Ni thermocouple	1 K	+/- 2%	-4°F - 2192°F 0°C - 1200°C	X
TA Air temperature	Semiconductor	1 K	+/- 0.5 K	-4°F / 248°F 0°C - 120°C	X
P Draft	Solid state	0.01 hPa	+/- 2%	+/- 40 hPa	X
NOx Nitrogen oxides	Calculation	1 ppm	Z	0-NOx max	X
Losses / Efficiency	Calculation	1 %	+/- 0.5 %	0-99.9 %	X
Excess Air / Lambda	Calculation	1 %	+/- 0.5 %	1.0-9.99	X
Soot	Filter paper method			0-9	X
Velocity with Pitot tube	Solid state	0.01 m/s	+/- 2%	0-80 m/s
** Different/customized ranges available. 4 sensors max. for IMR 1400 PS - 3rd & 4th sensor specified by customer Z = 0 - 20 % of whole measurement range ± 5 % 21 - 100 % of whole measurement range ± 1 % of displayed measurement
