IMR 2800 IR 28105 SO2 H2S Flue Gas Combustion Analyzer CO2 CO

IMR Environmental 2800-IR 28105-SO2/H2S Flue Gas Combustion Analyzer CO2 CO

Your Price: $6,890.00

IMR Environmental 2800-IR 28105-SO2/H2S Flue Gas Combustion Analyzer CO2 CO

Part Number: 14377

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

IMR Environmental 2800-IR 28105-SO2/H2S Flue Gas Combustion Analyzer CO2 CO

IMR Environmental 2800-IR 28105-SO2/H2S Flue Gas Combustion Analyzer CO2 CO

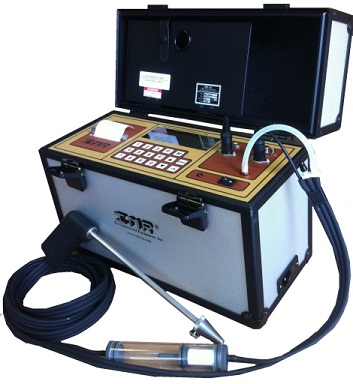

IMR Environmental Equipment 2800 IR has the newest sensor technology for precision flue gas measurements and longer lifetime.

IMR Environmental 2800-IR 28105-SO2/H2S Specifications

Recently Viewed Items

Mailing List

IMR Environmental 2800-IR 28105-SO2/H2S Specifications
Parameter	Principle	Resolution	Accuracy	Range	Standard
O2 Oxygen	Electro chemical cell	0.1 Vol.%	+/- 0.2 Vol. %	0-20.9 Vol. %	X
CO Carbon monoxide	NDIR	0.001 Vol.%	Z	0-10/20 Vol.%	X
CO2 Carbon dioxide	NDIR	0.01 Vol.%	+/- 0.2 Vol. %	0-20 Vol. %	X
HC/CH4 Hydrocarbons	NDIR	0.1 Vol.%	Z	0-100% LEL
NO Nitric oxide	Electro chemical cell	1 ppm	Z	0-2000 ppm
NO2 Nitrogen dioxide	Electro chemical cell	1 ppm	Z	0-100 ppm
SO2 Sulfur dioxide	Electro chemical cell	1 ppm	Z	0-4000 ppm	X
H2S Hydrogen Sulfide	Electro chemical cell	1 ppm	Z	0-200 ppm	X
TG Flue gas temperature	NiCr-Ni thermocouple	1 K	+/- 2%	-4°F - 2192°F 0°C - 1200°C	X
TA Air temperature	Semiconductor	1 K	+/- 0.2 K	-4°F / 248°F 0°C - 120°C	X
P Draft	Solid state	0.01 hPa	+/- 2%	+/- 40 hPa
NOx Nitrogen oxides	Calculation	1 ppm	Z	0-NOx max
NH3 Ammonia	Electro-chemical	1 ppm	Z	0-1000/5000 ppm
N2O Nitrous Oxide	NDIR	0.001 Vol. %	Z	0-1 Vol. %
HCl Hydrogen Chloride	Electro-chemical	1 ppm	Z	0-200 ppm
Cl2 Chlorine	Electro-chemical	1 ppm	Z	0-5000 ppm
H2 Hydrogen	Electro-chemical	1 ppm	Z	0-10000 ppm
Losses / Efficiency	Calculation	0.1 %	+/- 0.1 %	0-99.9 %	X
Excess Air / Lambda	Calculation	0.1 %	+/- 0.1 %	1.0-9.99	X
Soot	Filter paper method			0-9
Velocity with Pitot tube	Solid state	0.01 m/s	+/- 2%	0-80 m/s
RPM Meter	Solid state	100 RPM	+/- 2%	180-10000 RPM
** Different/customized ranges available. Equipped with a maximum of 8 gas sensors Z = 0 - 20 % of whole measurement range ± 5 % 21 - 100 % of whole measurement range ± 1 % of displayed measurement
