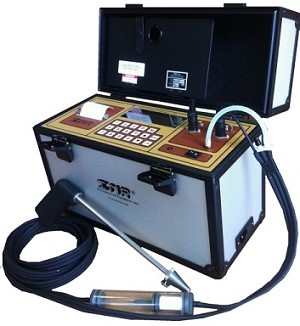

IMR Environmental 2800 5 28000 5 Combustion Gas Analyzer CO O2 NOx CO2

IMR Environmental 2800-5 28000-5 Combustion Gas Analyzer CO O2 NOx CO2

Your Price: $4,650.00

IMR Environmental 2800-5 28000-5 Combustion Gas Analyzer CO O2 NOx CO2

Part Number: 14397

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

IMR Environmental 2800-5 28000-5 Combustion Gas Analyzer CO O2 NOx CO2

IMR Environmental 2800-5 28000-5 Specifications

Recently Viewed Items

Mailing List

IMR Environmental 2800-5 28000-5 Specifications
Parameter	Principle	Resolution	Accuracy	Range	Standard
O2 Oxygen	Electro chemical cell	0.1 Vol.%	+/- 0.2 Vol. %	0-20.9 Vol. %	X
CO Carbon monoxide	Electro-chemical cell	1 ppm	Z	0-2000/4000ppm	X
CO High	(NDIR Optional)	0.001 Vol.%	Z	0-10/20 Vol.%
CO2 Carbon dioxide	NDIR	0.01 Vol.%	+/- 0.2 Vol. %	0-20 Vol. %
CO2 Carbon dioxide	Calculation	0.1 Vol.%	+/- 0.2 Vol. %	0- CO2 max	X
HC/CH4 Hydrocarbons	Pellistor or NDIR	0.1 Vol.%	Z	0-100% LEL	X
NO Nitric oxide	Electro chemical cell	1 ppm	Z	0-2000 ppm
NO2 Nitrogen dioxide	Electro chemical cell	1 ppm	Z	0-100 ppm
SO2 Sulfur dioxide	Electro chemical cell	1 ppm	Z	0-4000 ppm	X
H2S Hydrogen Sulfide	Electro chemical cell	1 ppm	Z	0-200 ppm
TG Flue gas temperature	NiCr-Ni thermocouple	1 K	+/- 2%	-4°F - 2192°F 0°C - 1200°C	X
TA Air temperature	Semiconductor	1 K	+/- 0.2 K	-4°F / 248°F 0°C - 120°C	X
P Draft	Solid state	0.01 hPa	+/- 2%	+/- 40 hPa
NOx Nitrogen oxides	Calculation	1 ppm	Z	0-NOx max	X
NH3 Ammonia	Electro-chemical	1 ppm	Z	0-1000/5000 ppm
N2O Nitrous Oxide	NDIR	0.001 Vol. %	Z	0-1 Vol. %
HCl Hydrogen Chloride	Electro-chemical	1 ppm	Z	0-200 ppm
Cl2 Chlorine	Electro-chemical	1 ppm	Z	0-5000 ppm
H2 Hydrogen	Electro-chemical	1 ppm	Z	0-10000 ppm
Losses / Efficiency	Calculation	0.1 %	+/- 0.1 %	0-99.9 %	X
Excess Air / Lambda	Calculation	0.1 %	+/- 0.1 %	1.0-9.99	X
Soot	Filter paper method			0-9
Velocity with Pitot tube	Solid state	0.01 m/s	+/- 2%	0-80 m/s
RPM Meter	Solid state	100 RPM	+/- 2%	180-10000 RPM
** Different/customized ranges available. Equipped with a maximum of 8 gas sensors Z = 0 - 20 % of whole measurement range ± 5 % 21 - 100 % of whole measurement range ± 1 % of displayed measurement
