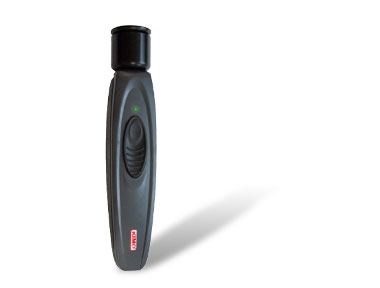

Kimo CAL 300 Sound Level Meter Acoustic Calibrator

Your Price: $694.96

Kimo CAL 300 Sound Level Meter Acoustic Calibrator

Part Number: 13816

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Product Resources
Features
Specifications
Choose Options
Resources

Kimo CAL 300 Sound Level Meter Acoustic Calibrator

Kimo CAL 300 Sound Level Meter Acoustic Calibrator

Kimo CAL 300 Acoustic calibrator for class 2 sound level meters.

Kimo CAL 300 Specifications

Recently Viewed Items

Mailing List

Kimo CAL 300 Specifications
Main level of acoustic pressure	94 dB ± 0,4 dB
Main frequency	1000 Hz ± 5 Hz
Distortion	DHT < 3%
Authotization for calibration	Green light
Transmission time	1 minute
Standards	NF EN 60942 : 2003 – CEI 60942 : 2003
Accuracy	Class 2
CE marking	As per European Directive 89/336/CEE and Standard product
Compatible microphones	TECHNICAL FEATURES 1 inch microphone without adapter (according CEI 61094-4 standard) ½ inch with BC12 ring 10 mm microphone with BC10 ring 3/8 inch microphone with BC38 ring Other microphones with suitable rings
Standard ambient conditions	23 °C – 50% RH – 1013 hPa
Operating conditions	0 °C to +40 °C / 25% to 90% RH / 650 hPa at 1080 hPa
Power supply	2 alkaline batteries – 1,5 V CEI : AAA – LR03 type
Autonomy at 20 °C	More than 1500 calibrations
Storage	From 0°C to +60 °C
Overall dimensions	Length : 185 mm – Width : 35 mm – Thickness : 31 mm
Weight	118 g (with batteries)
