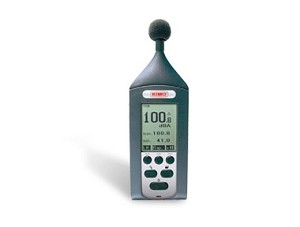

Kimo SDA Sound Pressure Level Decibel Meter
Zoom in on Image(s)
Kimo SDA Sound Pressure Level Decibel Meter
Email a friend
Kimo SDA Sound Pressure Level Decibel Meter
Your Price:
$403.06
Kimo SDA Sound Pressure Level Decibel Meter
Part Number:
13801
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Specifications
Choose Options
Resources
Kimo SDA Sound Pressure Level Decibel Meter
Kimo SDA is reliable, easy to use & meets metrology requirements.
Features
30 - 130 dB measuring range
LA & LAeq
LAFmin, LAFmax, LASmin, LASmax
Frequency weighting - A
0.1 dB resolution
Kimo SDA Technical Features
Microphone
Microphone
prepolarized electret condenser
Sensitivity
20 mV/Pa
Meter
Standards
IEC 61672-1 - Class 2
IEC 61651 - Class 2
IEC 60804 - Class 2
Measured parameters
LA
Other displayed parameters
LAFmax, LAFmin, LASmax, LASmin
Frequency weighting
A
Measuring range
30-130 dB
Time weighting
slow, fast
Overload indicator
detected at the peak sound-pressure level
Backlighted display
graphic 128x64 pixels. Adjustable contrast.
Resolution
0,1 dB
Reference direction
microphone axis
Reference range
30 - 130 dB
Reference level
94 dB
Reference frequency
1000 Hz
Environmental effects
Storage relative humidity
95 % RH max
Storage temperature
from 0 °C to + 50 °C.
Operating temperature
from -10 °C to + 50 °C.
Humidity dependence
in accordance with standard between 30
and 90%RH, reference being at 65%HR
and 40°C.
Static pressure dependence
According to class 2 requirements
Standards
IEC 61672-1 / IEC 61651 / IEC 60804
Electromagnetic compatibility
per 89 / 336 / CEE guidelines
Power supply
Batteries
3 AAA size or rechargeable batteries
(rechargeable batteries need to be recharged when inside
your instrument)
Battery life (at 20°C)
30 hours min (with alkaline batteries)
Kimo SDA Datasheet
