Miller Honeywell 75N/D22BK Full Floating Linemen's Belt 22 Inch D Size

Miller Honeywell 75N/D22BK Full Floating Linemen's Belt 22 Inch D Size

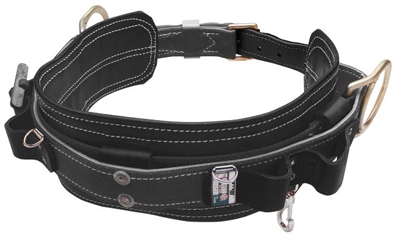

Miller 75N D22BK lineman belt allows lateral movement of the D saddle containing D rings while in use.

Miller Honeywell 75N/D22BK Specifications

Recently Viewed Items

Mailing List

Miller Honeywell 75N/D22BK Full Floating Linemen's Belt 22 Inch D Size
Miller 75N D22BK lineman belt allows lateral movement of the D saddle containing D rings while in use.

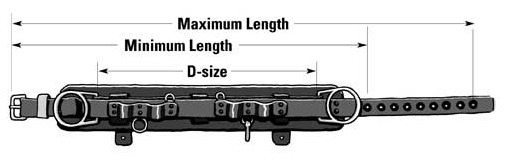

As linemen change position on poles the D rings adjust easily to movement. As a direct result the pole strap will rub the pole less frequently & receive less wear. Any pull or load doesn't bind the tools to the tool loops. Linemen Belt Sizing Your comfort as a lineman with a belt will depend on the belt materials and D ring location. For the best fit you must order by using a measurement known as D-size. This D-size refers to distance between D ring heels. While wearing a lineman belt, your D-rings are best when located approximately 1 in. (25 millimeters) in front of your hip bones. For proper D size make a measurement across your back, hip bone - hip bone & add an additional 2 in. (51 millimeters). This is your D-size.

Miller Honeywell 75N/D22BK Specifications
Materials
Webbing	1 3/4 in Polyester
Back Pad	5 in
Thread	Polyester
D-ring	Clear Chromate Finished Carbon Steel
Hardware	Steel
Grommets	Brass
Label	Metal Tag
All hardware meets ASTM fifty-hour salt spray test requirements.
Technical
Max. Working Load	310 pounds
Webbing Minimum Tensile	5,000 pounds (22 kiloN)
D ring Minimum Tensile	5,000 pounds (22 kiloN)
Buckle Minimum Tensile	4,000 pounds (18 kiloN)
