Miller Honeywell 75N D23BK Full Floating Linemens Belt 23 Inch D Size

Miller Honeywell 75N/D23BK Full Floating Linemen's Belt 23 Inch D Size

Your Price: $746.51

Miller Honeywell 75N/D23BK Full Floating Linemen's Belt 23 Inch D Size

Part Number: 14332

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Product Resources
Features
Specifications
Choose Options
Resources
Feature 11
Feature 12
Feature 13

Miller Honeywell 75N/D23BK Full Floating Linemen's Belt 23 Inch D Size

Miller Honeywell 75N/D23BK Full Floating Linemen's Belt 23 Inch D Size

Miller 75N D23BK lineman belt allows lateral movement of the D saddle containing D rings while in use.

Miller Honeywell 75N/D23BK Specifications

Recently Viewed Items

Mailing List

Miller Honeywell 75N/D23BK Full Floating Linemen's Belt 23 Inch D Size
Miller 75N D23BK lineman belt allows lateral movement of the D saddle containing D rings while in use.

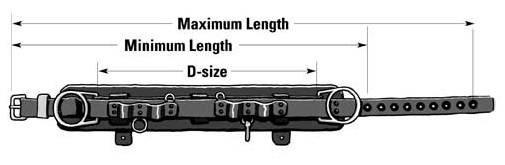

As linemen change position on poles the D rings adjust easily to movement. As a direct result the pole strap will rub the pole less frequently & receive less wear. Any pull or load doesn't bind the tools to the tool loops. Linemen Belt Sizing Your comfort as a lineman with a belt will depend on the belt materials and D ring location. For the best fit you must order by using a measurement known as D-size. This D-size refers to distance between D ring heels. While wearing a lineman belt, your D-rings are best when located approximately 1 in. (25 millimeters) in front of your hip bones. For proper D size make a measurement across your back, hip bone - hip bone & add an additional 2 in. (51 millimeters). This is your D-size.

Miller Honeywell 75N/D23BK Specifications
Materials
Webbing	1 3/4 in Polyester
Back Pad	5 in
Thread	Polyester
D-ring	Clear Chromate Finished Carbon Steel
Hardware	Steel
Grommets	Brass
Label	Metal Tag
All hardware meets ASTM fifty-hour salt spray test requirements.
Technical
Max. Working Load	310 pounds
Webbing Minimum Tensile	5,000 pounds (22 kiloN)
D ring Minimum Tensile	5,000 pounds (22 kiloN)
Buckle Minimum Tensile	4,000 pounds (18 kiloN)
