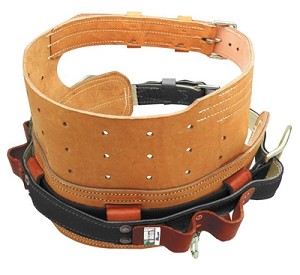

Miller Honeywell 88N D25 Full Floating Linemens Belt 25 Inch D Size

Miller Honeywell 88N/D25 Full Floating Linemen's Belt 25 Inch D Size

Your Price: $852.33

Miller Honeywell 88N/D25 Full Floating Linemen's Belt 25 Inch D Size

Part Number: 14345

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Product Resources
Features
Specifications
Resources

Miller Honeywell 88N/D25 Full Floating Linemen's Belt 25 Inch D Size

Miller Honeywell 88N/D25 Full Floating Linemen's Belt 25 Inch D Size

Miller 88N D25 lineman belt allows lateral movement of the D saddle containing D rings while in use.

Miller Honeywell 88N/D25 Specifications

Recently Viewed Items

Mailing List

Miller Honeywell 88N/D25 Full Floating Linemen's Belt 25 Inch D Size
Miller 88N D25 lineman belt allows lateral movement of the D saddle containing D rings while in use.
As linemen change position on poles the D rings adjust easily to movement. As a direct result the pole strap will rub the pole less frequently & receive less wear. Any pull or load doesn't bind the tools to the tool loops. Linemen Belt Sizing Your comfort as a lineman with a belt will depend on the belt materials and D ring location. For the best fit you must order by using a measurement known as D-size. This D-size refers to distance between D ring heels. While wearing a lineman belt, your D-rings are best when located approximately 1 in. (25 millimeters) in front of your hip bones. For proper D size make a measurement across your back, hip bone - hip bone & add an additional 2 in. (51 millimeters). This is your D-size.

Miller Honeywell 88N/D25 Specifications
Materials
Webbing	1 3/4 in Polyester
Back Pad	9 in Leather
Thread	Polyester
D-ring	Clear Chromate Finished Carbon Steel
Hardware	Steel
Grommets	Brass
Label	Metal Tag
All hardware meets ASTM fifty-hour salt spray test requirements.
Technical
Max. Working Load	310 lbs (kg)
Webbing Min. Tensile	5,000 lbs (22kN)
D-ring Min. Tensile	5,000 lbs (22kN)
Buckle Min. Tensile	4,000 lbs (18kN)
