Miller Honeywell 88N/D30 Full Floating Linemen's Belt 30 Inch D Size

Miller Honeywell 88N/D30 Full Floating Linemen's Belt 30 Inch D Size

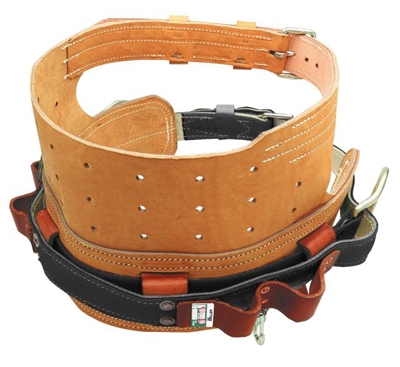

Miller 88N D30 lineman belt allows lateral movement of the D saddle containing D rings while in use.

Miller Honeywell 88N/D30 Specifications

Recently Viewed Items

Mailing List

Miller Honeywell 88N/D30 Full Floating Linemen's Belt 30 Inch D Size
Miller 88N D30 lineman belt allows lateral movement of the D saddle containing D rings while in use.
As linemen change position on poles the D rings adjust easily to movement. As a direct result the pole strap will rub the pole less frequently & receive less wear. Any pull or load doesn't bind the tools to the tool loops. Linemen Belt Sizing Your comfort as a lineman with a belt will depend on the belt materials and D ring location. For the best fit you must order by using a measurement known as D-size. This D-size refers to distance between D ring heels. While wearing a lineman belt, your D-rings are best when located approximately 1 in. (25 millimeters) in front of your hip bones. For proper D size make a measurement across your back, hip bone - hip bone & add an additional 2 in. (51 millimeters). This is your D-size.

Miller Honeywell 88N/D30 Specifications
Materials
Webbing	1 3/4 in Polyester
Back Pad	9 in Leather
Thread	Polyester
D-ring	Clear Chromate Finished Carbon Steel
Hardware	Steel
Grommets	Brass
Label	Metal Tag
All hardware meets ASTM fifty-hour salt spray test requirements.
Technical
Max. Working Load	310 lbs (kg)
Webbing Min. Tensile	5,000 lbs (22kN)
D-ring Min. Tensile	5,000 lbs (22kN)
Buckle Min. Tensile	4,000 lbs (18kN)
