Miller Honeywell 93N D23BK Fixed Linemens Belt 23 Inch D Size

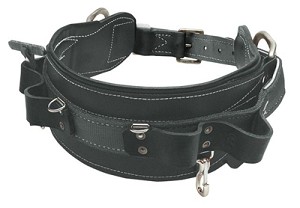

Miller Honeywell 93N/D23BK Fixed Linemen's Belt 23 Inch D Size

Your Price: $272.18

Miller Honeywell 93N/D23BK Fixed Linemen's Belt 23 Inch D Size

Part Number: 14275

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Product Resources
Features
Specifications
Choose Options
Resources
Feature 11
Feature 12
Feature 13

Miller Honeywell 93N/D23BK Fixed Linemen's Belt 23 Inch D Size

Miller Honeywell 93N/D23BK Fixed Linemen's Belt 23 Inch D Size

Miller 93N D23BK doesn't allow lateral movement for the tool loop waist strap or D rings.

Miller Honeywell 93N/D23BK Specifications

Recently Viewed Items

Mailing List

Miller Honeywell 93N/D23BK Fixed Linemen's Belt 23 Inch D Size
Miller 93N D23BK doesn't allow lateral movement for the tool loop waist strap or D rings.
Linemen Belt Sizing Your comfort as a lineman with a belt will depend on the belt materials and D ring location. For the best fit you must order by using a measurement known as D-size. This D-size refers to distance between D ring heels. While wearing a lineman belt, your D-rings are best when located approximately 1 in. (25 millimeters) in front of your hip bones. For proper D size make a measurement across your back, hip bone - hip bone & add an additional 2 in. (51 millimeters). This is your D-size.

Miller Honeywell 93N/D23BK Specifications
Materials
Webbing	1 3/4 in Polyester
Back Pad	5 in Leather
Thread	Polyester
D-ring	Clear Chromate Finished Carbon Steel
Hardware	Steel
Grommets	Brass
Label	Metal Tag
All hardware meets ASTM fifty-hour salt spray test requirements.
Technical
Max. Working Load	310 lbs (kg)
Webbing Min. Tensile	5,000 lbs (22kN)
D-ring Min. Tensile	5,000 lbs (22kN)
Buckle Min. Tensile	4,000 lbs (18kN)
