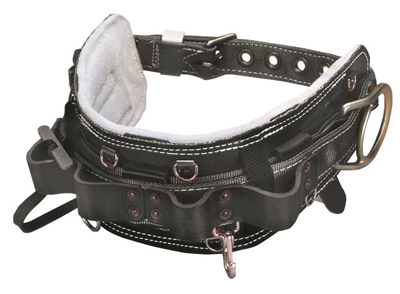

Miller Honeywell 93YR/D22BR Semi Floating Linemen's Belt 22 Inch D Size

Miller Honeywell 93YR/D22BR Semi Floating Linemen's Belt 22 In D Size

Your Price: $300.51

Part Number: 14319

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Product Resources
Features
Specifications
Resources

Miller Honeywell 93YR/D22BR Semi Floating Linemen's Belt 22 In D Size

Miller Honeywell 93YR/D22BR Semi Floating Linemen's Belt 22 Inch D Size

Miller 93TR D22BR lineman belt allows lateral movement for the waist strap before use.

Miller Honeywell 93YR/D22BR Specifications

Recently Viewed Items

Mailing List

Miller Honeywell 93YR/D22BR Semi Floating Linemen's Belt 22 Inch D Size
Miller 93TR D22BR lineman belt allows lateral movement for the waist strap before use.

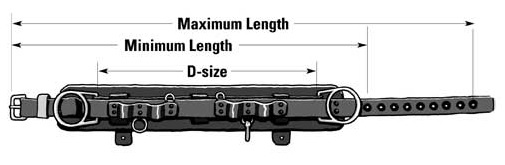

The tool loop waist strap is a completely separate component from the D saddle which allows for lateral waist strap movement prior to usage. Any pull or load doesn't bind the tools to the tool loops. Linemen Belt Sizing Your comfort as a lineman with a belt will depend on the belt materials and D ring location. For the best fit you must order by using a measurement known as D-size. This D-size refers to distance between D ring heels. While wearing a lineman belt, your D-rings are best when located approximately 1 in. (25 millimeters) in front of your hip bones. For proper D size make a measurement across your back, hip bone - hip bone & add an additional 2 in. (51 millimeters). This is your D-size.

Miller Honeywell 93YR/D22BR Specifications
Materials
Webbing	1 3/4 in Polyester
Back Pad	5 in
Thread	Polyester
D-ring	Clear Chromate Finished Carbon Steel
Hardware	Steel
Grommets	Brass
Label	Metal Tag
All hardware meets ASTM fifty-hour salt spray test requirements.
Technical
Max. Working Load	310 lbs (kg)
Webbing Min. Tensile	5,000 lbs (22kN)
D-ring Min. Tensile	5,000 lbs (22kN)
Buckle Min. Tensile	4,000 lbs (18kN)
