Novatek MHS-11 MHS 11 Concrete Floor Scabbler With Dust Collection Shroud
Zoom in on Image(s)

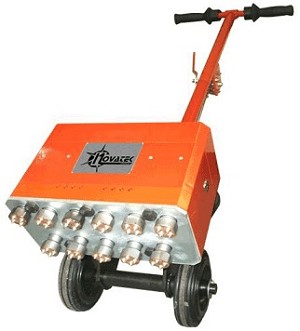

Novatek MHS-11 Concrete Floor Scabbler With Dust Collection Shroud - Pneumatic
Email a friend
Novatek MHS-11 MHS 11 Concrete Floor Scabbler With Dust Collection Shroud
Your Price:
$4,085.46
Novatek MHS-11 MHS 11 Concrete Floor Scabbler With Dust Collection Shroud
Part Number:
10763
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Specifications
Choose Options
Resources
Novatek MHS-11 MHS 11 Concrete Floor Scabbler With Dust Collection Shroud
Novatek MHS-11 is designed for thick coating removal & concrete surface preparation.
Novatek's MHS-11 minimizes
substrate
damage to prevent water ingress which may freeze & cause cracking.
Capable of removing concrete to a depth of 1/4 inch in a single pass, it is perfect for PCB contaminated or
radioactive
concrete
removal
. Optional cruciform bushing heads are available for more precise material reduction to leave a much smoother finish.
Dust Collection Shroud
Carbide Tipped
Tungsten
Heads
11 heads producing 2200 blows / minute for each piston
Designed to minimize aggregate damage
Unique Cutter Head Action
Piston exhausts back into chamber to reduce moving parts wear
Extends tool life
3-Point Vibration Damping
Reduced operator fatigue
Improved control
Lower Air Consumption
Low 70 CFM
requirement
Economical operating costs
Operates with a single air compressor
Compact Design
11 inch (280 millimeter) body width
Works within 1/2 inch of walls
Reduction in additional finishing
Large rear wheels improve maneuverability

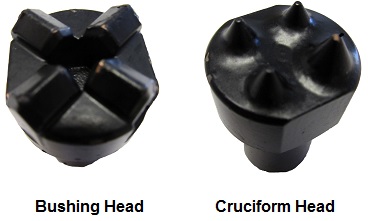

Novatek MHS-11 159.6001 Cutter Heads
Carbide Tipped
Tungsten
Bush Hammer Head
Heavy Duty 1 piece piston head for concrete bushing, removing laitance & to expose concrete aggregate
Optional Carbide Tipped
Tungsten
Cruciform Head
Heavy Duty 1 piece piston head combination for steel & concrete surfaces
Thick coating removal
Heavy rust & scale removal
Texture profiling surfaces
Novatek MHS-11 159.6001 Specifications
Piston Diameter
1.125” (28.6mm)
Piston Length
5.22” (132.6mm)
Piston Stroke
1.535” (39.0mm)
Blows per Minute
11 x 2200
Air Consumption
70 cfm (1982 lpm)
Working Height
51” (1295mm)
Air Hose Bore
3/4 inch (19mm)
Vibration
5.0 m/s²
Removal Rate
300 ft²/hr
Depth of Cut (Average)
0.125 inch
Dimensions (L x W x H)
13.4 x 11.2 x 50.8 inches
Weight
160 lbs (70 kg)
Choose Options
Accessories
426.5355 - Bush Hammer Cutter Head [+$74.16]
426.5358 - Cruciform Cutter Head [+$87.55]
426.MS1B - 11 Bush Hammer Head with Brush Seal Kit [+$815.76]
426.MS1C - 11 Cruciform Heads with Brush Seal Kit [+$963.05]
Novatek MHS-11 Datasheet
Novatek MHS-11 Parts List
