Schaefer PAC-TZ12B Air Cooled Portable Air Conditioner AC Unit
Zoom in on Image(s)
Schaefer PAC-TZ12B Air Cooled Portable Air Conditioner
Email a friend
Schaefer PAC-TZ12B Air Cooled Portable Air Conditioner AC Unit
Your Price:
$2,559.37
Schaefer PAC-TZ12B Air Cooled Portable Air Conditioner AC Unit
Part Number:
10700
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Specifications
Choose Options
Resources
Schaefer PAC-TZ12B Air Cooled Portable Air Conditioner AC Unit
Schaefer PAC-TZ12B has no special electrical requirement and cools the air with high efficiency.
Schaefer's
portable air conditioning units are d
esigned for convenience,
portability,
roll easily across the floor and are set up in minutes.

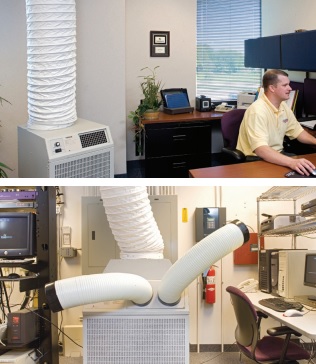

Cool your office quietly at an acceptable sound level without a significant augmentation to normal background noise. Perfect for temporary or
supplemental
cooling in
field offices
,
equipment rooms or
plant floors. Features a backward inclined plenum evaporator & condenser fan, it functions at the lowest dB level for any portable air conditioner.
Delivers unsurpassed performance for a wide range of humidity and
ambient temperature
levels. A thermostatic expansion valve which isn't available in typical portable ac units will automatically adjust to the environment, allowing operation under extreme conditions at a lower cost & with less freeze ups.
Less expensive operation due to a low amount of power draw on a per ton cooling basis as compared to conventional portable air conditioning units
13,500 BTU / hour (1.1 tons)
Perfect for Industrial and rental applications
USA made
2 year warranty
Accessory Kit Features
Nozzle Kit will direct cool air exactly where you need it
Ceiling Discharge Kit enables condenser air venting to plenum area above suspended ceilings
Condenser - Return Air Plenum enables supply air ducting to condenser coil
Evaporator - Return Air Plenum enables supply air ducting to evaporator coil
Supply Air Duct Adapter enables you to connect ducting to ac unit cool air discharge
Condensation Pump Kit will automatically remove evaporator coil water condensation which allows continuous operation
Schaefer PAC-TZ12B Specifications
Cooling Capacity
13,500 BTU/hr (2.3 tons)
Power Supply
115 Volts / 1 Phase / 60 Hertz / 15 Amps
Thermostat Control
Mechanical
Power Consumption
1.4 kW
Current Consumption
11.9 Amps
Recommended Circuit Amps
15.0
NEMA Plug Type
5-15P
Evaporator CFM, Free Discharge
350
Condenser CFM
500
Maximum Duct Length
40 Feet
Operating Limits (min-max)
65 - 105 deg. F
Sound Level
57 dB
Dimensions
28 x 19 x 38 inches
Net / Shipping Weight
163 / 205
1. Rating Conditions: 95°F at 60% RH
2. Electrical ratings based on UL484
Choose Options
Accessories
PAC-CK1 - 10 Inch Ceiling Discharge Kit [+$298.00]
PAC-CK10 - 2 x 2 Foot Ceiling Exhaust Panel [+$186.00]
PAC-CP1 - 10 Inch Condenser Return Air Plenum [+$300.00]
PAC-CS1 - Condensate Screen [+$92.00]
PAC-DA6 - 6 Inch Cold Air Supply Duct Adapter [+$134.00]
PAC-DF10 - 10 Inch Hot Air Exhaust Duct Flange [+$100.00]
PAC-EP1 - 10 Inch Evaporator Return Air Plenum [+$266.00]
PAC-NK1 - (2) 4 Inch Nozzle Kit [+$284.00]
PAC-PC1 - Condensate Pump 115 Volt [+$224.00]
Schaefer PAC-TZ12B Datasheet
Schaefer PAC-TZ12B Brochure
