Schaefer VF36-SAT VersaFog Mobile Oscillating HP Misting Fan
Zoom in on Image(s)

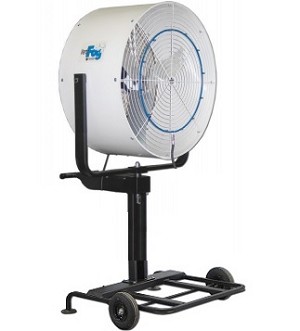

Schaefer VersaFog VF36-SAT Mobile Oscillating HP Satellite Misting Fan
Email a friend
Schaefer VF36-SAT VersaFog Mobile Oscillating HP Misting Fan
Your Price:
$1,267.50
Schaefer VF36-SAT VersaFog Mobile Oscillating HP Misting Fan
Part Number:
10692
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Specifications
Choose Options
Resources
Schaefer VF36-SAT VersaFog Mobile Oscillating HP Misting Fan 36"
Schaefer VF36-SAT is a high pressure misting evaporation based cooling system.
Schaefer's
industrial strength 36 inch oscillating fan features twelve high pressure misting nozzles & distributes air cooling out to 65 Ft. with a 90 degree arc.
This innovative high pressure mist system atomizes the water droplets which increases the rate of evaporation & minimizes moisture condensation as compared to low pressure misting systems.
Heat can cause major problems on job sites,
decreasing productivity
,
causing fatigue and
lowering morale. Working in very hot conditions can present safety & health
hazards
including heat stroke and
heat exhaustion
.
Misting fans are a simple & efficient means of minimizing heat stress, and
may reduce the air temperature up to 35 degrees
.

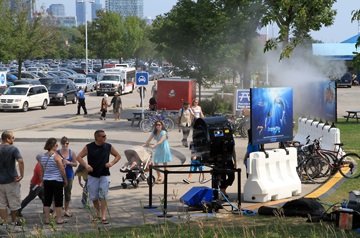

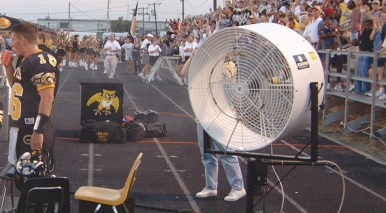

Applications
Rental
Outdoor retail
Fire departments & rescue operations
Music events
Outdoor weddings
Pools
Construction sites
Patios & decks
Sporting events
Camping
Tent rentals
Resorts
Schaefer VF36-SAT Features
Mobile self contained high pressure misting evaporative air cooling satellite fan (high pressure pump assembly not included)
36 inch fan featuring
A totally enclosed 1/2HP motor
Rugged polyethylene fan housing
Steel guards - Powder coated
90 degrees of oscillation & 11,000 CFM
36" satellite fan connects to base unit using the quick connect HP line (included)
Mist under high pressure evaporates quickly & cools without leaving wetness
128,000 BTU / hour (10 Tons) cooling capacity
Cools air by 30 degrees F maximum
Cool a maximum of 3,000 square ft.
Garden hose with 15 PSI minimum water pressure required for supplied water
Includes a 25 foot outdoor rated power cord w/ integrated GFCI
Some assembly required
2 yr limited warranty
USA Made
Schaefer VF36-SAT Specifications
Fan Diameter
36 inches
Motor
1/2 HP - 115 / 230 Volts
Amps
7.6
Cooling in Tons
10
CFM
11,000
Cooling Area
3000 Sq. Ft.
Weight
180 pounds
Choose Options
Hoses
HPH16 - High Pressure Hose 16 Inches [+$50.00]
HPH57 - High Pressure Hose 57 Inches [+$62.00]
HPH360 - High Pressure Hose 30 Feet [+$130.00]
HPH720 - High Pressure Hose 60 Feet [+$225.00]
Mist Rings
HP-25MR12BL - High Pressure Mist Ring 25 in. OD 12 Nozzle Blue; no nozzles [+$130.00]
HP-22MR10BL - High Pressure Mist Ring 22 in. OD 10 Nozzle Blue; no nozzles [+$110.00]
HP-15.75MR8BL - High Pressure Mist Ring 15.75 in. OD 8 Nozzle Blue; no nozzles [+$80.00]
Nozzle Packs
BN8-1024-4PAK - Brass Nozzle .012 in. Orifice 10 - 24 Threads Package of 4 [+$15.00]
BN8-1024-6PAK - Brass Nozzle .008 in. Orifice 10 - 24 Threads Package of 6 [+$34.00]
BN8-1224-6PAK - Brass Nozzle .008 in. Orifice 12 - 24 Threads Package of 6 [+$37.00]
Nozzles
BNP-1224 - Brass Plug 12 - 24 Threads [+$3.00]
BN12 - Brass Nozzle .012 inch Orifice 10 - 24 Threads [+$5.00]
BN16 - Brass Nozzle .016 inch Orifice 10 - 24 Threads [+$5.00]
BN20 - Brass Nozzle .020 inch Orifice 10 - 24 Threads [+$5.00]
BN8 - Brass Nozzle .008 inch Orifice 10 - 24 Threads [+$8.00]
BN8-1224 - Brass Nozzle .008 inch Orifice 12 - 24 Threads [+$9.00]
Schaefer VF36-SAT VersaFog Datasheet
Schaefer VF36-SAT VersaFog Manual
